EnglishTechnical data of cassette filters

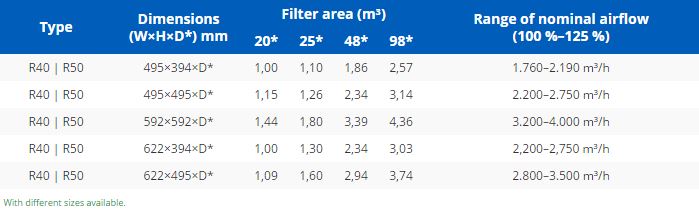

| 20 | 25 | 48 | 98 | - CLASS G4/M5
Description
- Ecofil® Panel Filter with closely pleated filter media made of synthetic micro spun bond.
- Recycling by incineration possible, metal free design possible.
- New Ecofil® pleating system using hot-melt traces for low resistance performance.
- Special designs with plastic, cardboard, or metal frame and additional special reinforcing as well.
TECHNICAL DATA
| Filter class | EN 779:2012 | G4 | G5 |
| Average arrestance (synthetic dust) Am | {%} | 94 | 95 |
| Average efficiency (atmospheric dust) Em | {%} | 37 | 45 |
| Initial pressure drop at 100 % nominal airflow | (Pa) * 20 in 25 | 70 | 80 |
| (Pa) *48 | 50 | 55 | |
| (Pa) *98 | 45 | 50 | |
| Final pressure drop at 100 % nominal airflow | (Pa) | 250 | 450 |
| Number of layers | 1 | 1 | |
| Maximal operation temperature | (ºC) | 80 | 80 |
| Maximal operation moisture (relative humidity) | (%) | 100 | 100 |
| Inflammability | DIN 53 438 | F1 | F1 |
Technical data are being compiled to the best of our knowledge. Responsibility cannot be accepted. We reserve the right of technical modifications.

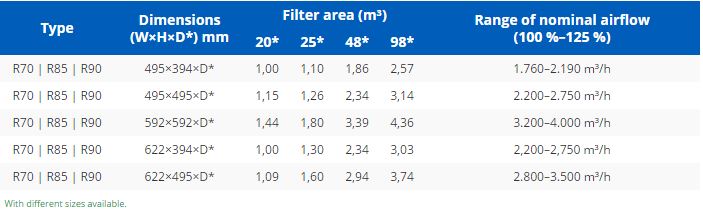

| 20 | 25 | 48 | 98 | - CLASS M6/F7/F8/F9
Description
- Ecofil® Panel Filter with closely pleated filter media made of synthetic micro spun bond.
- Recycling by incineration possible, metal free design possible.
- New Ecofil® pleating system using hot-melt traces for low resistance performance.
- Special designs with plastic, cardboard, or metal frame and additional special reinforcing as well.
TECHNICAL DATA
| Filter class | EN 779:2012 | G4 | M5 | F8/9 |
| Average arrestance (synthetic dust) Am | {%} | 95 | 98 | 99 |
| Average efficiency (atmospheric dust) Em | {%} | 65 | 85 | 95 |
| Initial pressure drop at 100 % nominal airflow | (Pa) * 20 | 90 | 120 | 140 |
| (Pa) *25 | 90 | 110 | 125 | |
| (Pa) *48 | 60 | 80 | 100 | |
| (Pa) *98 | 55 | 70 | 80 | |
| Final pressure drop at 100 % nominal airflow | (Pa) | 450 | 450 | 450 |
| Number of layers | 1 | 1 | 1 | |
| Maximal operation temperature | (ºC) | 80 | 80 | 80 |
| Maximal operation moisture (relative humidity) | (%) | 100 | 100 | 100 |
| Inflammability | DIN 53 438 | F1 | F1 | F1 |
Technical data are being compiled to the best of our knowledge. Responsibility cannot be accepted. We reserve the right of technical modifications.

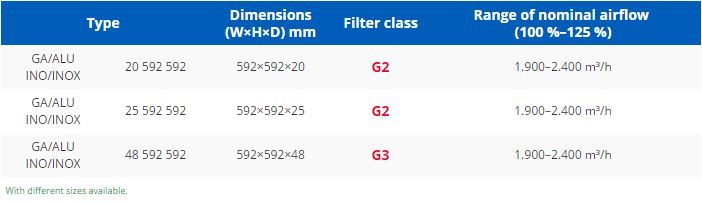

| GA/ALU | INO/INOX |
Description
- Ecofil® Panel Filter with welded metal multilayers.
- Expanded metal screen on both sides.
- Regenerable, washable.
- GA or ALU with galvanized Ecofil® steel frame and aluminium multilayers.
- INO or INOX with Ecofil® steel frame and stainless steel multilayers.
TECHNICAL DATA
| Filter class | EN 779:2012 | G2 | G2 | G3 |
| Average arrestance (synthetic dust) Am | {%} | 65 | 70 | 80 |
| Average efficiency (atmospheric dust) Em | {%} | - | - | - |
| Initial pressure drop at 100 % nominal airflow | (Pa) | 10 | 15 | 30 |
| Final pressure drop at 100 % nominal airflow | (Pa) | 400 | 400 | 400 |
| Number of layers | 20 | 25 | 48 | |
| Maximal operation temperature | (ºC) | 400 | 400 | 400 |
| Maximal operation moisture (relative humidity) | (%) | 100 | 100 | 100 |
| Inflammability | DIN 53 438 | F1 | F1 | F1 |
Technical data are being compiled to the best of our knowledge. Responsibility cannot be accepted. We reserve the right of technical modifications.
